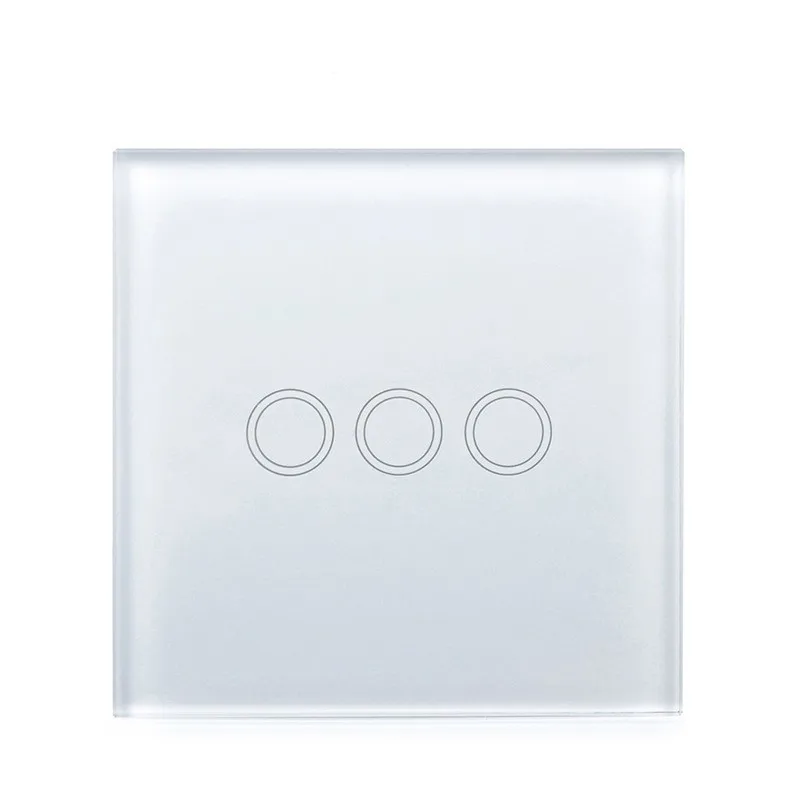

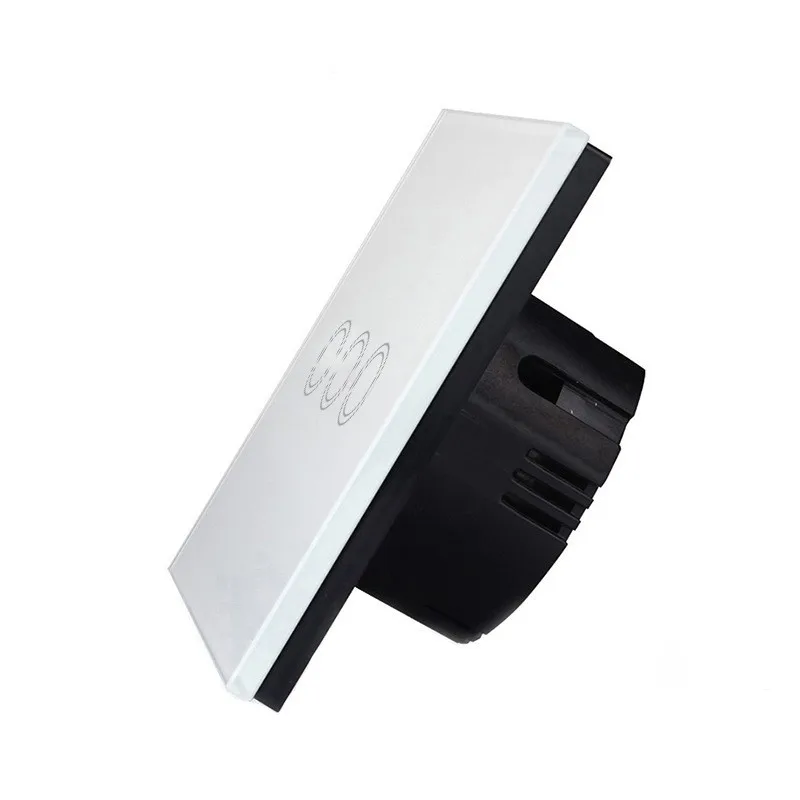

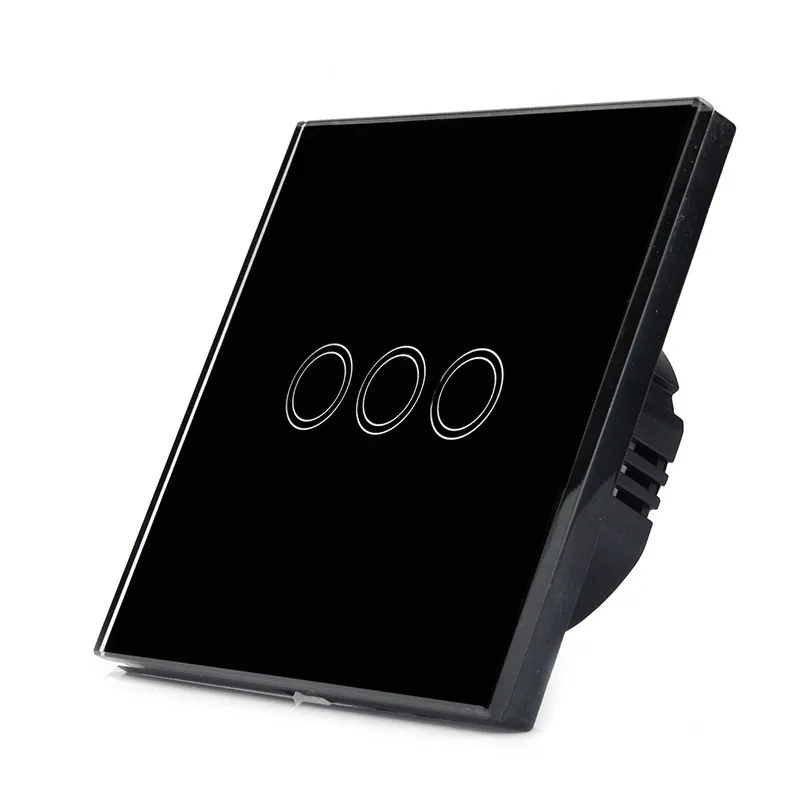

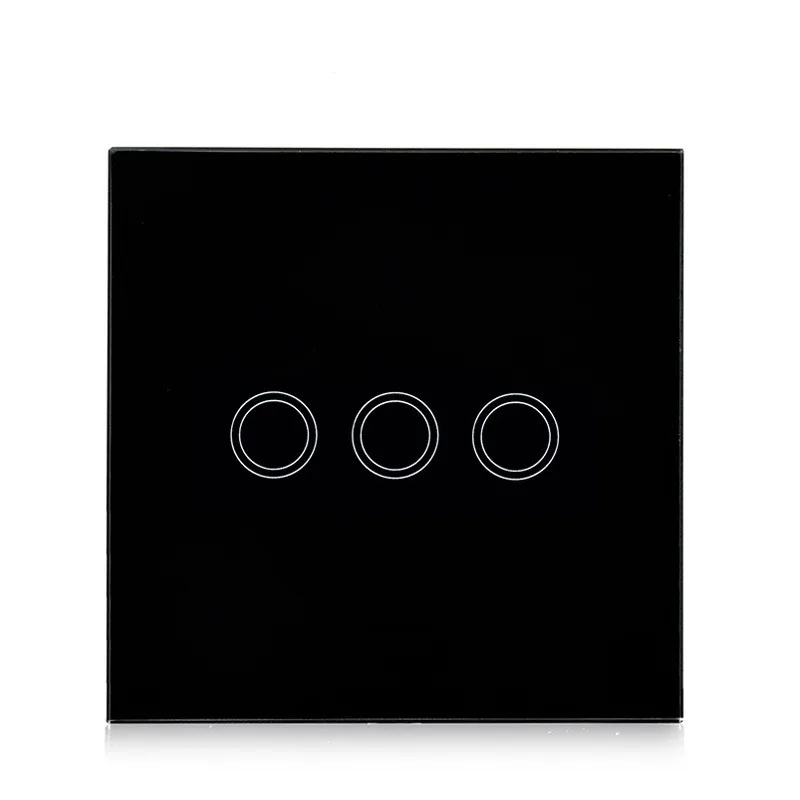

EU standard electrical light switch touch screen 3gang 1way glass panel for home

FOB Reference Price:Get Latest Price
$1.00 - $10.00 / Pieces | 10 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Anhui, China
Brand Name:
Bowei
Model Number:
BT-TS020
Size:
86*86*33mm, 86*86cm
Max. Current:
4.5A
Max. Voltage:
110V~240V
Mechanical Life:
100000 Times
Color:
White/Black
Rated Frequency:
50-60Hz
Rated Power:
1000w
Input Wiring:
Neutral Wire(N) And Live Wire(L)
Panel Material:
Tempered Glass
Touch Way:
Capacitive Touch
Waterproof ability:
good
Packing:
standard export carton
Factory:
Anhui bowei eletronics technology Co.,ltd
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
normal packing:30pcs/cartons
Port
shanghai,shenzhen
Product Description

                China Factory Direct Sale 2017 Newest UK Touch Switch Lighting

Material characteristics:

1. Waterproof moisture-proof toughened glass;

2. The fire retardant ABS shell, high hardness, flame retardant


Function characteristics:

1. Imported IC, professional touch responsive;

2. The red and blue backlight, visible at night;

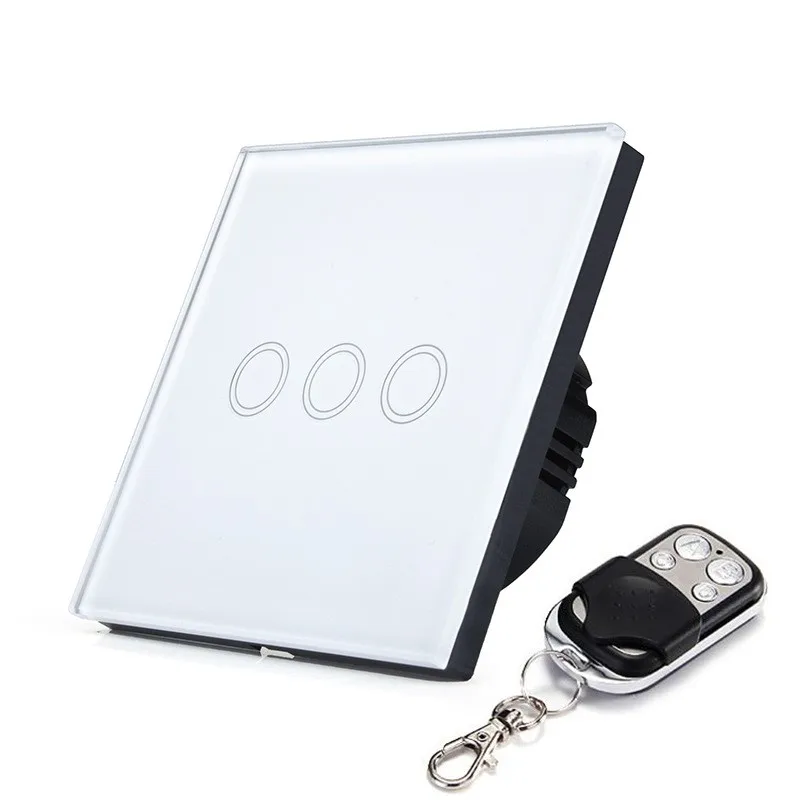

3. The infrared remote control, remote control distance 6 m;

4. Suitable for most of the lamps and lanterns, inductive fluorescent lamp is not suitable for single wire switch;

5. Relay life of more than 100000 times;

6. Standby power consumption is less than 0.3 w


Installation requirements:

1. It is strictly prohibited to charged installation, the installation is complete rear can use.

2. According to the selected model,  intal diagram wiring;

3. Every road load switch receive no more than 1000 w, total load is less than 2000 w.

4. The junction box is 86 standard, the size of at least 75 mm * 75 mm * 35 mm

Detailed Images

1:open the panel by scredriver

2:connect Neutral Wire(N) And Live Wire(L) with the marks

3:Screw the mounting screws to the 86 mounting holes

4:cover the panel,connect the power(click)

Packing & Delivery


1.Packing: All standard export packing or as your requirements.

2.Shipping: For samples and small orders, we suggest HK post,EMS,DHL,FedEx,TNT and UPS.
Shipping out the goods within 7 working days after getting payment.
Large quantity suggest shipping by sea, we usually ship out within 15-20 working days.
